Gen 2 radiator isolator bushings

GTS Dean

Enthusiast
Joined
Jul 22, 2000
Posts
3,765
Reaction score
195
Location
New Braunfels, Texas
These are NLA from Dodge, but they were also used to support the intercoolers on mid-90's RAM-Cummins engines. The n ipples have two different diameters, but the flanges are the same. Has anybody seen something like this out there in rubber, or urethane?


Attachments

  • 94-00 ram intcool bushings marked.jpg
    94-00 ram intcool bushings marked.jpg
    78.2 KB · Views: 9
OP
OP
GTS Dean

GTS Dean

Enthusiast
Joined
Jul 22, 2000
Posts
3,765
Reaction score
195
Location
New Braunfels, Texas
Story complete:

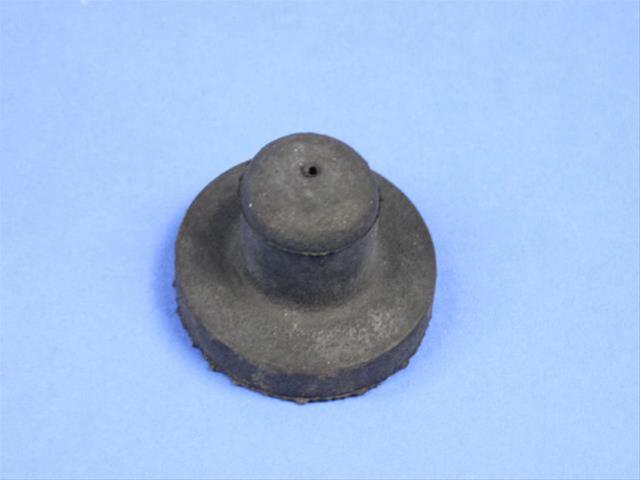

I ordered the Dakota radiator bushings from Summit. They are larger in all dimensions except flange thickness. I was particularly worried that they would not pass thru the shim holes, but with some silicone grease they worked fine, without a mm to spare.

The radiator studs are way smaller than the new bushing voids, so I bought an assortment of vacuum caps for $7 to make up the difference. I put a short sleeve of heat shrink on the stud, then slid a red cap over for a nice, snug fit. The black caps filled the bushings perfectly, but the red caps held them off the tank bottom a few mm, so I snipped the ends off and they were perfect. I greased them well so they would easily stab into the black cups. The OE's stay on the radiator to drop thru the shims, but with the OD difference, I pushed the new ones in first and then installed the radiator. All totaled, I spent about $40 on the project in direct parts.

I would recommend taking the jumper hose from the passenger side radiator steam nip ple completely off before starting. It was a constant pain coming out and going back in with the radiator. I also bought a gravity feed/bleed bucket setup after 30 years of Viper ownership. Much cleaner and more efficient purging trapped air as the t-stat opens and causes bubbles to belch and coolant replenishes.


Attachments

  • *******-grease.jpg
    291 KB · Views: 9
  • bushing locator pins.jpg
    bushing locator pins.jpg
    91.1 KB · Views: 8
  • pre-trim standoff.jpg
    pre-trim standoff.jpg
    123.2 KB · Views: 8
  • Viper-Dakota bush clearance.jpg
    Viper-Dakota bush clearance.jpg
    118.8 KB · Views: 11
  • Radiator filler kit.jpg
    Radiator filler kit.jpg
    121.7 KB · Views: 13
